This machine is suitable for producing HDPE and LDPE plastic film, It a adopts the servo motor discharge the material high speed and photocell to track the cutting .

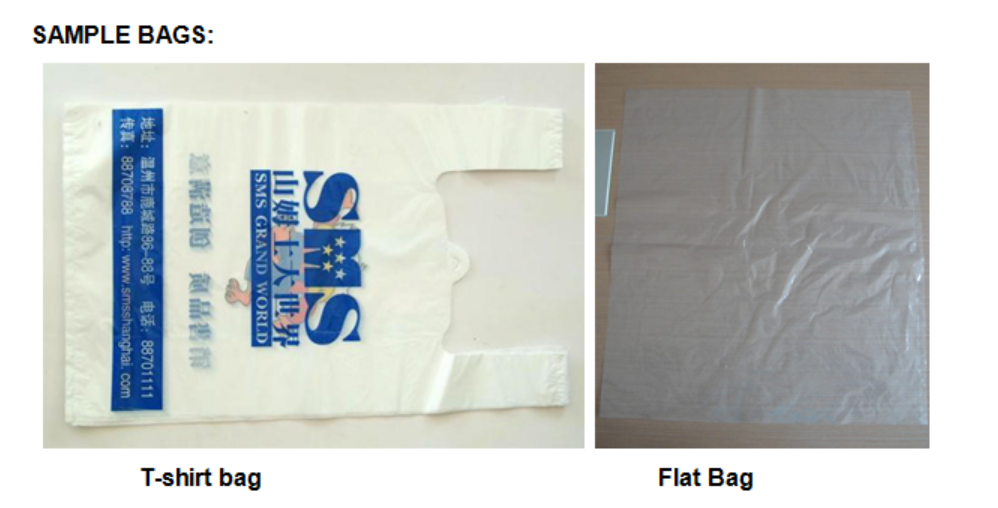

Punch the “u” shape bag in one time and with such features. such as easy operation, high efficiency and high finished products.

Details

2. Main drive: A.C 1 set

Inverter 1 set

1. Unwinding Section

a) Feeding motors DC motors 2 sets to control unwinding material feeding

b) Photoelectric tracking 1 set back film tracking, edge correction

c) One unwinding station

d) Brake system for unwinding

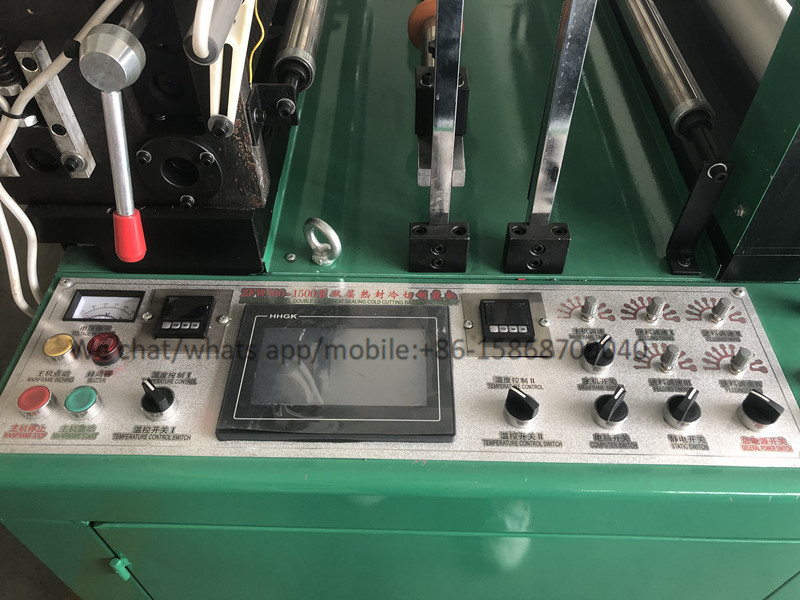

4. Single Microcomputer control, with functions as:

-bag length setting,

-display of cutting speed,

-bags counting,

-shift between printed bag and non-printed bags,

-batch setting, heating temperature control,

-patch machine control

5. Bag-making section
a) Machine has single deck, maximum for 4 lines.

b) For both natural color bag and printed bag width≤600mm, it can cut two lines at a time
c) Equipped with one piece of heated sealing copper bar .
d) Equipped with one Color code tracking for printing traction

e) Equipped with static-remover device.
f) Heating of sealing bar is controlled by microcomputer

6. For bottom sealed bag production
