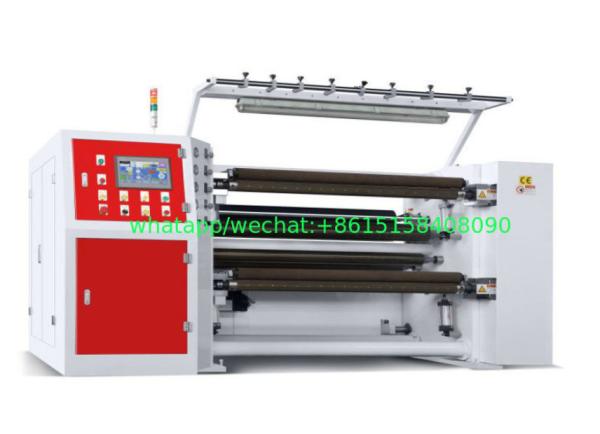

    350MPM Shaftless Unwinding Thermal Paper Slitting Machine PLC Mitsubishi Delta Inverter


    350MPM Shaftless Unwinding Thermal Paper Slitting Machine PLC Mitsubishi Delta Inverter


    Usage characteristic
    This machine is used to check, rewind and cut all kinds of roll materials such as BOPP, PET, CPP and PVC.

    FEATURE
    1. Imported PLC integrated control is used in electrical control system, human-machine communication is carried out by touch screen, Set and display working parameters according to the requirements from different products.
    2. Magnetic power clutch is adopted for rewinding, roll diameter is automatically calculated by PLC to achieve automatic tension control.
    3. Magnetic power clutch is adopted for winding, active winding, roll diameter is automatically calculated by PLC to achieve automatic tension control.
    4. Loading and unloading using air shaft and up-down by air cylinder . It is easy for loading , unloading and with high efficiency , has web guide system .
    5. Using the straight knives or rotary knives for slitting , regularity disc surface , air exhausting device for waste .
    6. In the system, there are calculations of meter, roll diameter, automatic machine stop when lack of material etc.
    7. The system has perfect mechanic, electric and pneumatic design, also good safety protection

    Technical data
    Maximum unwind diameter800mm
    Maximum rewind diameter600mm
    Unwind width400 – 1300mm
    Paper Core Diameter76mm
    Maximum machine speed0 - 300 M/min
    Slitting width30 – 1300mm
    Deviation correction precision380 mm ( after fold size of raw material)
    The dimension of roll material+/- 0.4mm
    Tension setting range2 – 30 Kg
    Draw roller motor4kw
    Total power12kw
    Machine size2350 x 4000 x 1700mm
    Machine weight2800kg
    Machine colourMilky white (can be done as your requirements)
    Slitting materialFilm12-180um , paper, adhesive paper, PE, PVC
