PRODUCT DESCRIPTION:

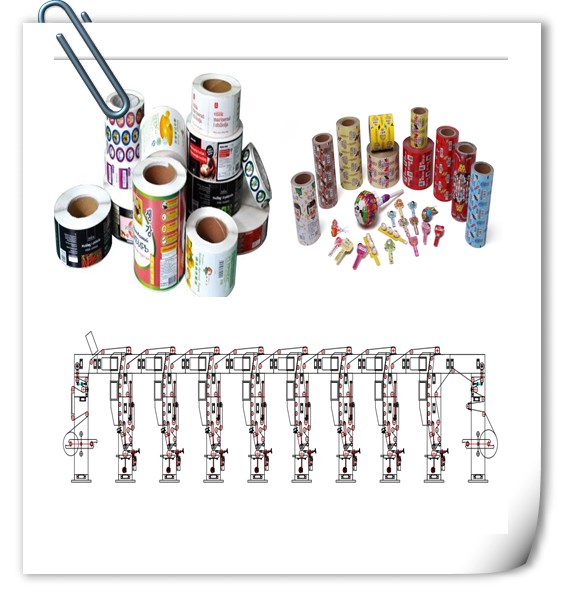

Machines in this series are applicable for continuous multi color
printing on rolling materials in good printing performance such as
cellophane,BOPP,PET,PVC,PE,aluminum foil,and paper,broadly applied
for all types of super-quality printed matters.
MAIN TECHNICAL PARAMETERS:
| Printing color number | 8 colors (possible to add or reduce printing color class) |
| General printing base material | BOPP: 20-60um PVC: 35-60um OPP: 15-60um CPP: 25-60um PET: 10-60um PE: 25-140um Nylon:15-50um Cellophane: 20-30um Paper: 30-400gsm Aluminum Foil:6-40um |
| Max width of web | 1250 mm |
| Max mechanical speed | 220 m/min |
| Max printing speed | 200 m/min |
| Vertical comprehensive colored precision | ±0.1 mm |
| Diameter of printing roller | 100 mm-350 mm |
| Max width of printing width | 1200 mm |
| Width of guide roller | 1250 mm |
| Max Unwind Diameter | 750 mm |
| Max Rewind Diameter | 750 mm |
| Main drive motor | 11 kw |
| Heating power | 216kw |
| Power | 265 kw (Actually working power 150 kw) |
| Weight | About 35000 kg |
| Overall dimensions | About 20000 (L)×4700(W)×3350(H) mm |
| Machine color | Milky (you can choose any other colors) |
| Cast iron wall | 500(W)x 1860(L)x 80(Thickness) mm |
Feature:
1. The machine is seven motors system, auto splicing with out
machine stop.
2. Computerized auto color vertical & horizontal registering system
2000E+ with video inspection.
3. Unwind and rewind with built-in dual arms dual-stations
mechanism, realising auto material change.
4. Adopting variable frequency motor control for main motor,
unwinder unit, rewinder unit, tracking unit.
5. Full automatic PLC program tension control system for whole
machine, 4 section stable tension.
6. Shaft-less cylinder loading. Pneumatic back pressure moving
doctor blade, three side adjusting and double air cylinder
pressure.
7. Printing ink circulating system, inflatable type shaft draw in
and draw out.
8. Sealed type oven, outside heating system, hot-air circulation
system, auto constant temperature control system.
9. High printing speed 200 m/min.
10. Adopting aluminum alloy guide roll after anode oxidation
processing and in balance.
11. High-accuracy gear transmission box, adopting patented
technique.
12. Whole machine body cast iron, the size of wallboard is 500(W)x
1860(L)x 80(Thickness) mm.
13. Ink trolley for easy operation.
14. New function delivery roller , oil transfer from delivery
roller to printing cylinder, to realise oli transfer more uniform,
to get better printing quality. Meanwhile , the machine can run at
a high speed without oil flying out.
