Full automatic PLC program tension control system for rotogravure
printing machine Polyethylene Film Paper Aluminum Foil
rotogravure
printing production line.pdf
With:
1. Double side print device
2. Automatic Horizontal and vertical color register system (Kesai
2000E+)
3. Static electric eliminator (for each color)
4. Gear box (with 2 gears, shaft line and printing cylinder shaft,
in 38CrMOALA)
5. Kesai computer and still picture (HD model)
6. With ink transmit roller (for each color)
7. With ink cart (for each color)
9. Unwinding and rewinding with automatic material exchanging
device
10. With blower (5.5kw, lower noisy model) to exhaust bad smell air

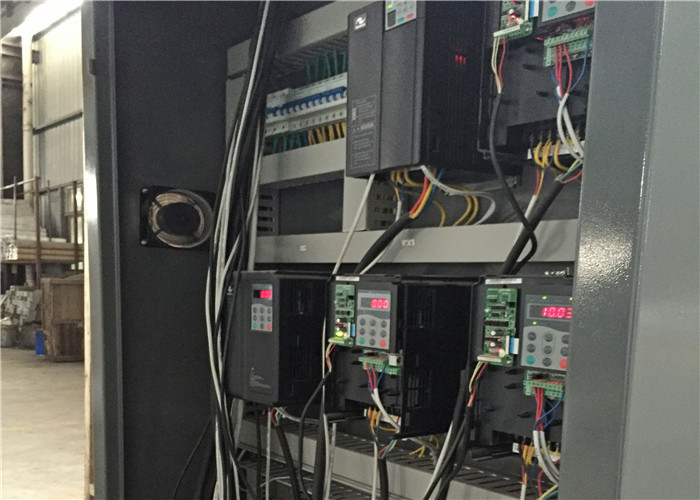

Note:With inverter (Yaskawa), PLC (Siemens), touch screen
(Weinview) etc
| OPP | 18~60μm | PET | 12~60μm |
| PE | 40~80μm | NY | 12~50μm |
| CPP | 20~60μm | | |
| PVC | 20~80μm | | |
| Paper | 30~80g/ m2 | |
| Main performance parameter |
| machine direction | from right to left |
| Max machine speed | 220m/min |
| Max printing speed | 200m/min |
| unwinding diameter | Φ750mm |
| rewinding diameter | Φ750mm |
| rewinding motor | 4kw |
| unwinding motor | 4kw |
| traction motor | 2.2kw |
| register error | Vertical≤±0.1mm (auto register system)
horizontal≤±0.1mm (auto register system) |
| tension range | 3~25kg |
| tension accuracy | Rewinding and unwinding ±0.5kg(total)
Traction ±0.3kg(total) |
| rewinding and unwinding paper core diameter | Φ76mm× Φ92mm |
| printing pressing force | 500kg |
| printing pressing roller hardness | Shore Hardness(A)70°~75° |
| printing cylinder diameter | Φ100mm~Φ350mm |
| scraper moving | ±5 mm |
| pneumatic pressure | 0.6Mpa≤P≤1.0Mpa |
| oven max temperature | 80℃(room temperature 20℃) |
| oven inside length | 1.9m |
| oven max wind speed | 28m/s |
| utilization rate of hot air returning | 0~50% |
| Accuracy of temperature control | ±2℃ |
| max air input | 3000m3/h |
| fan power | 3kw |
| color unit distance | 1.2m |
| printing material | PET:12~60μm BOPP: 15~60μm
CPP:20~60μm OPP: 18~60μm
cellophane:20~30μm |
| power supply | 3 phase, 50Hz, 380V±10％ |
| Spare parts for free |
| Name | Qty |
| ink cart | Same as color qty |
| Gas isolation pump | Same as color qty |
| Still picture (Kesai) | set |
| Computer color register system (Kesai) | set |
| spanner | set |
| socket head wrench | set |
| cross screwdriver | set |
| straight screwdriver | set |
Statement:
1. The ink types, materials, printing area will effect printing
speed.
2. Since this model is one of the high-tech products, according to
the design requirements, we reserve the right to change some
structure and parameters in order to provide you better equipment.
Structure
- Driving by main motor through main shaft;
- Gear box for every printing unit with flexible connection by
clutch;
- Independent groundwork for main motor and gear down device
Parameter
- Motor power 15kW
- Shaft Φ40mm
- Clutch flexible style
Feature
- Start at low speed with full load;
- Automatic speed acceleration;
- Integrated with the whole machine;
