Two Heads Flat Bed Slitting Machine With Manual Rotary Die Cutting
For Blank Label
Allfine Group-20 years experience Solution
1:Label production line- flexo print machine,die cutting
machine,slitting machine,inspection and rewinding machine
2:Flexible package line-water bottle label PVC,heat transfer Pet,
Opp, Pe etc rotogravure printer, dry laminator, PP PE film blowing
machine,bag making machine
3:Decal paper,wine and smoking package-Silk screen press machinery,
wicket dryer, uv dryer
4:Paper cup production line- flexo printer. die cutting machine,
paper cup making machine
1: Save material 2: Improve efficiency 3:Professional tranning 4:
Factory built
Partner Manager-Jack Huang
Allfine Group
Two Heads Flat Bed slitting machine with manual rotary die cutting
for blank label
flexo
printing production line.pdf
so make machine run stably and durably. It contains an oil gear box
which reduces abrasion to the machine during the operation, to make
machine long life.
HD video link about LC semi-rotary die cutting machine with
slitting station
https://youtu.be/aRdr6CBF-j0
HD video link about LC semi rotary die cutting machine (running at
Canada customer's factory, die cut plastic labels)
https://youtu.be/oTITdff-v-o
Machine Description
| Item | LC-370TOP |
| Max. Web Width | 370mm |
| Register Accuracy | ± 0.15mm |
| Accuracy of Cutting | ± 0.15mm |
| Max. Slitting Speed | 300m/min |
| Max. Rotary Die cutting Speed | 120m/min |
| Max. Intermittent Die Cutting Speed | 60m/min |
| Die Cutting Repeat | 100mm ~ 420mm |
| Max. Unwinding Dia. | 800mm (about 2000m length) |
| Max. Rewinding Dia. | 700mm (about 2000m length) |
| Magnetic Cylinder | 140Teeth 1/8' CP (standard) |
| Rewind Inner Core Size | 1inch ~ 6inch (standard in 3inch) |
| Thickness Of Material | 20um ~ 300um |
| Motor Power | 8KW |
| UV Lamp Power | 4.8KW |
| Overall Dimension (L*W*H) | 2500mm * 1200mm * 1500mm |
| Weight | 2500kgs |

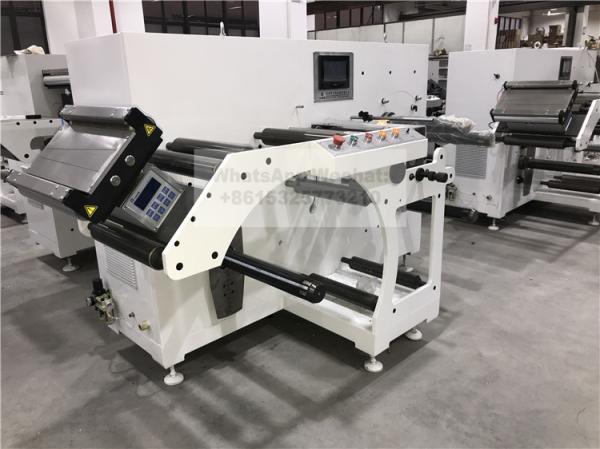

Machine Images
Converter LC-370TOP is a fully modular converting line, which can
be customised to meet your individual needs. Whatever your
customers require, this system can provide - from rotary die
cutting, flexo printing, inkjet printing and laminating to cold
foil applications.
The Converter offers innovative design, first class engineering and
proven capability. It can therefore deliver a real competitive
advantage to your business.
Die Cutting Unit
Adopt servo motor driven, double servo motor traction, independent
tracking system, intermittent and full rotary interchange working.
Pressure Measurement System
Two pressure measurement on the top of two sides of the magnetic
cylinder to ensure the pressure keep same during die cutting job,
and can check the pressure data conveniently when performance.
Magnetic Cylinder
with high precision 140T magnetic cylinder, die cutting station
with spring - When the machine is not doing die cutting work, the
pressure can be released, and the magnetic roller of the die
cutting station will be lifted to avoid contact with paper.
Waste Matrix Unit
Independent tension control, the rewinding speed changes following
with the speed of the main machine, reducing tension fluctuations
and prolonging the life of the magnetic powder.
Web Guide System
Adopt ultrasonic sensor web guide system with international famous
brand.
We offer 24 hours after-sale consulting services nationwide on
hotline;
6. Video solution of equipment emergency failure. User themselves
need to equip video system and devices. Our technicians will
analyze the problems through video and guide clients’ technician to
solve the problem all together
For more information, please add my
whatapp/viber/mobile/wechat/qq:+8615325773210
| The condition of machine running |
| A. illumination no exceed 3000LX |
| B. altitude no exceed 1000m |
| C. The temperature of stuff around the machine should be no higher
than +40℃ and no lower than -20℃. |
| D. The relative humidity of air no exceeds 85%. |
| E. The place should no have conductive dust. |
| F. Circumstance of no blast danger and fire. |
Packaging & Shipping
Packing Details: Wooden Case Packing Or Iron Tray Packing
Delivery Time:30-50days after prepayment
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the
machine.
* Engineers available to service machinery overseas.
