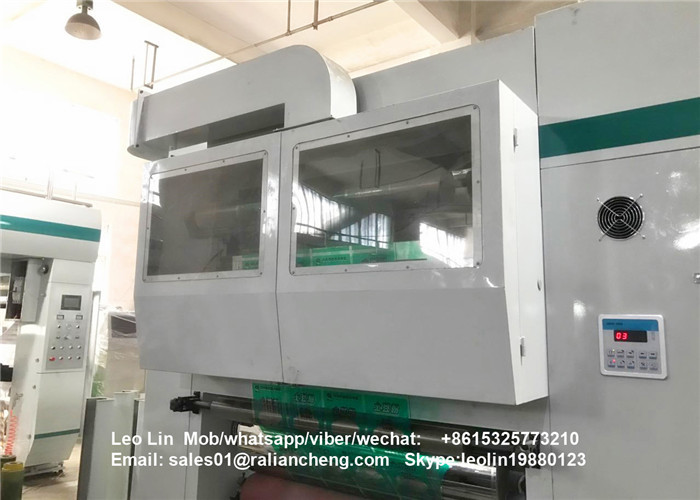

LC-1000B Type 200m/m 800 unwind Dry&Wet compound Coating Laminating Machine paper,aluminum foil,film anilox coating

rotogravure printing production line.pdf

Machine function:

paper,aluminum foil,film dry-wet compound technology

Technical parameters

1. Coating method:anilox coating

2. Compound type:dry,wet compound

3. Compound substrate: paper 40~120g/m2 aluminum foil,film: 10~20um 4. Maximum composite speed: 200m/min

5. Maximum mechanical speed:220m/min

6. Maximum substrate width:: 1000mm (roller width 1050mm)

7. Motor driven (vector frequency converter) vector frequency conversion motor speed control

8. Maximum unwinding diameter:Ø600mm(aluminum foil rewinding) /Ø800 mm (paper)

9. Maximum rewinding diameter: Ø1000mm

10. Tension control range:5~50kg

11. Oven temperature:hotair120℃ (electrical heating)

12. Total power:about190kw

13. Machine weight:about20000kg

14.Dimensions:17m×4.2m×4.7m(LxWxH)(12meters drying tunnel)

Facilities(the user is responsible for)

1) Power Supply:three-phase five-wire power 380V±5%,50HZ

2) Air supply:pressure 6-8kg/cm2

3) Exhaust pipe

4) Exhaust fan:7.5kw

5) Cooling water pipe

The configuration list

Video:info me for the mp4

Q:what kind of in-sale service do you offer? what is the warranty for the easy fault parts? and what is the delivery time for the machine?

A:if the easy fault parts is in the warranty period, we will offer the free replacement as per quality warrantee terms and conditions, and the delivery time for the machine is within 45 working days after the deposit

Q:how about the after sale service? warranty time for the machine?

A:we offer one year free warranty, and long-term trainning( the first time is free, but we will charge you for the second time and the training after that). we will offer free replacement according to the series numbers when the parts damaged within the warranty period

Q:do you offer any special service?. example: design, customized ect

A:initial free training, second charged, customized is welcome
