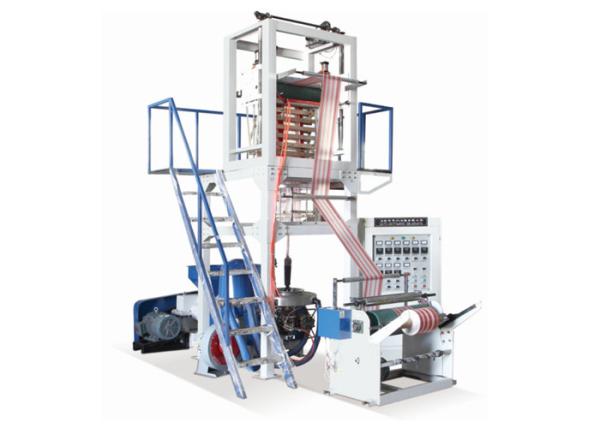

Double Color Strip Plastic Extruder Film Blowing Machine for t-shirt shopping bag

Plastic bag production line.pdf

Main Technical Parameter

Feature:
Material of screw: Alloy steel 38CRMOALA,Wear resistance,72hour surface Nitriding, National standard
Barrel material:Alloy steel 38CRMOALA,Wear resistance,72hour surface Nitriding, National
Air ring: cast aluminium

Extruder
Screw Diameter:Ø40mm×2
Screw length and Diameter ratio (L/D ratio): 28:1
Screw rolling speed:15-100r/m
Cooling device power: 120wx2
Heating area:6 area
Screen change style:Manual
Heating power:18.5Kw
Main motor power:18.5kw A/C 3-phase 380V,50HZ, adopts Frequency inverter
control

Die head
Diameter: Φ80
Heating power:2.0kw
Surface processing:Die head, die core are both hard chrome plated and polished

Traction
Traction motor:0.75kw 3-phase,380V,50HZ, frequency inverter control
Traction speed:10-60 m/min
Traction style:Pneumatic control, pressing roller press
Folding:installed with folding device, can manual adjust(M-fold)

Unwinding
Unwinding style:single winder (rubber roller friction style -2 station)
Speed control:Torque motor speed control
Unwinding roller type:Air shaft 2pcs


CONFIGURATION LIST

SPARE PART

HD Video link about LC-45 mini type film blowing machine
https://youtu.be/d1BY1mQprn0

HD Video link about LC-1500 PE film blowing machine extruder (1500mm width, export to Bangladesh)
https://youtu.be/ahjr26sz_aI

HD Video link about LC-50-700 film blowing machine
https://youtu.be/tiLDZY7ueWA

HD video link about ABA 2 layers Co-extrusion PE film blowing machine
https://youtu.be/OIS4b52QpuQ
