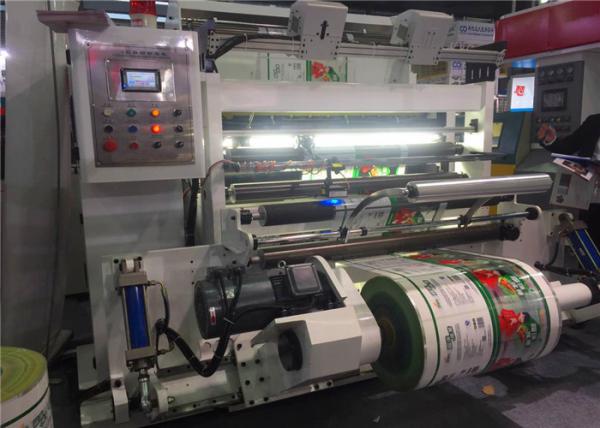

Hot stamping foil printing film defects inspect machinery
automatically BOPP PVC PET PE strobe light LED shaftless
rotogravure printing production line.pdf
Usage characteristic:
This machine is suitable for rewinding and inspecting many kinds of
roll material, such as BOPP,PET,PVC,CPP, film, paper, aluminum
foil, leather, label printed and unprinted etc
| FEATURE |
| 1. With imported PLC to control, touch screen to operate. |
| 2. Shaftless pneumatic unwinding device, hydraulic lifting, easier
to change material . |
| 3. Inspecting system is adopted fully automatic image-scanning
device, can automatic check out defect . |
| 4. film absorbing type material connecting table . |
| 5. Unwinder is adopted EPC |
| 6. System with many functions, such as meter counting, roll
material diameter counting, automatic stop of material breaking,
etc |
| Technical data |
| Maximum unwind diameter | φ800mm |
| Maximum rewind diameter | φ800mm |
| Unwind width | 400 – 1300mm |
| Paper Core Diameter | 76mm (3”) |
| Maximum machine speed | 300 M/min |
| Unwind motor power | 5.5kw |
| Rewind motor power | 5.5kw |
| Traction motor power | 4kw |
| Total power | 16kw |
| Dimension | 3800mm(L)×3400mm(W)×2150mm(H) (lift unwinding and rewinding, to make the width less than 2300mm
for loading to container.) |
| Weight | 3500kgs |
| Inspection material | Film and lamination film: 12 um-180 um PE,PVC: 40 um-150um |
| Color | White (Can be customized) |
| Spare Parts follow with machine |
| 1. Tool box 1 pcs |
| 2. Other standard accessories 1 set |
video link about LCYB-1300 fully automatic High-speed inspection
Machine
https://youtu.be/L5FBlnpBLbk
For more information, please add my
whatapp/viber/mobile/wechat/qq:+8615158408090
Rewind Section:
Structure:
1. Shaftless pneumatic cone type unwind device, hydraulic lifting,
easier to adjust width
2. Automatic tension control.
3. Motor with active rewinding and unwinding function
Specifications:
1. Material roll width 400-1300mm
2. Maximum rewind diameter 800mm
3. Rewind motor 5.5kw
Features:
1. Shaftless pneumatic cone type unwind device, hydraulic lifting,
easier to change material .
2. Tension controlled by vector frequency and PLC automatically
calculates mother roll diameter, ensure the tension controlling
much preciser.
3. Motor active unwinding to make tension control range larger,
without residual torque, tension controlling much preciser.
4. Rewinding motor can rotate clockwise and anticlockwise, with
unwinding and rewinding function
