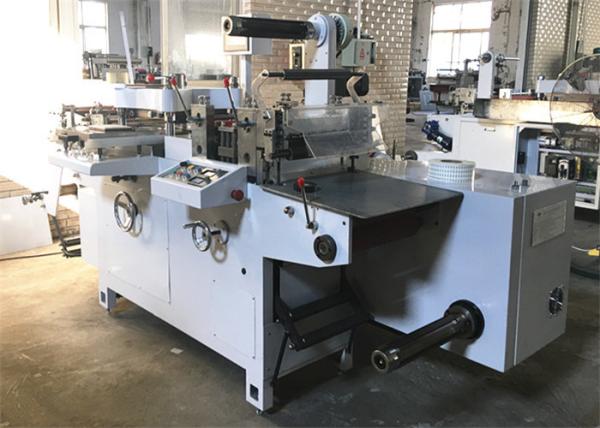

Narrow Webbing Label Die Cutter Machine with Punching Function PVC
Sleeves Label and Laser Anti False Label
flexo printing production line.pdf
Features:
Die cutting speed:300 times/m
Die cutting precision:+-0.1mm
Die cutting size:350*310mm
Paper max width:320mm
Unwinding max diameter:600mm
Rewinding max diameter:600mm
Machine weight:2000KG
Voltage:380V 50HZ 3Phase
Total Power:7KW
Machine size:3200*1350*1600mm(L*W*H)
Unwinding part:
A: Air shaft 3 inch
B: Friction Plate type
C: Unwinding traction feeding roller
D: Unwinding traction motor
E: Unwinding dacing roller
F: Auto web guide
G: Color register
Die cutting part:
A: 3KW main motor
B: Auto Circulating lubrication system
C: Main Machine use NSK Bearing
D: Spring
E: Machin body casting
F: Die cutting Die part
Feeding part:
A: Feeding use sevor motor( frence schneider)
B: Feeding rubber roller( Rubber roller)
C: Bearing( Haerbin)
D: Synchro belt (Ningbo volon)
Waste rewinding part:
A: waste rewinding use air shaft
B: Magnetic brake clutch
C: Separted waste rewinding speed regluation motor
D: waste rewinding lack material Photoelectricity
Rewinding part:
A: rewinding dacing roller
B: rewinding traction rubber roller
C: rewinding traction motor
D: rewinding air shaft
E: magnetic brake clutch
Sheeting part:
A: steel knife
B: electromagnetic brake clutch
Sheet metal, shell, and paint
Tool box Manual
LC-320Z automatic label die cutting machine
HD video link about LC- 350Z Medium Speed Die Cutting Machine (300
times per min, running at domestic customer's factory)
https://youtu.be/BwWWdGclTH8
Service for After-Sale:
We can offer the engineer for oversea service to install, tranning,
and maintain ect.
Our Service and Technical Support:
1.Easy fault parts supplying.
2.Online Error solution
3.Installation with commissioning
4.Trainning for the operator
5.Machine software upgraded
6.Manual for products.
7.Error maintenace.
8.The others problems that buyers will be concern
Example:
Q: what kind of pre-sale service do you offer? do you offer the
free sample? and how about the freight cost?
A: we will make sample according to customer material by our
machine, and take a video for customer reference. above is free,
but the freight cost should be paid by customer.
