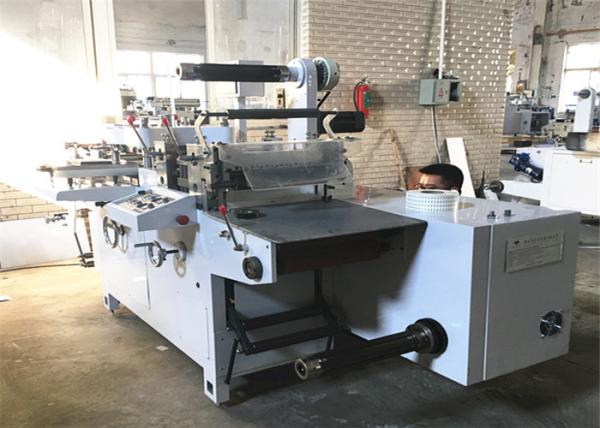

Roll Screen Protective Film Non-Woven Cloth / Fabric Die Cutting
Machine with Sheeting Function
flexo printing production line.pdf
| Max. material width | 320mm |
| Max. Cutting Size | 310*350mm |
| Max. Speed | 300 press / min |
| Positioning Accuracy | ± 0.1mm |
| Mechanical Structure | iron and steel |
| Weight | 1500kg |
| Dimensions | 2750*1450*1600 |
Main Characteristics:
It is very suitable for die cutting self-adhesive paper, label,
dacron film trademark and laser anti-false trademark. It is a ideal
and highly efficient supporting equipment for flexographic press,
continuous screen printing machine, intaglio press and anti-false
trademark die cutter. ( before machine power is on, do ground
connection.)
Die cutting part:
A: 3KW main motor
B: Auto Circulating lubrication system
C: Main Machine use NSK Bearing
D: Spring
E: Machin body casting
F: Die cutting Die part
Feeding part:
A: Feeding use sevor motor( frence schneider)
B: Feeding rubber roller( Rubber roller)
C: Bearing( Haerbin)
D: Synchro belt (Ningbo volon)
Waste rewinding part:
A: waste rewinding use air shaft
B: Magnetic brake clutch
C: Separted waste rewinding speed regluation motor
D: waste rewinding lack material Photoelectricity
Rewinding part:
A: rewinding dacing roller
B: rewinding traction rubber roller
C: rewinding traction motor
D: rewinding air shaft
E: magnetic brake clutch
Sheeting part:
A: steel knife
B: electromagnetic brake clutch
Sheet metal, shell, and paint
Tool box Manual
LC-320Z automatic label die cutting machine
HD video link about LC- 350Z Medium Speed Die Cutting Machine (300
times per min, running at domestic customer's factory)
https://youtu.be/BwWWdGclTH8
There will be an operation training for operator:
(1) Training for right operation;
(2) Training for common sense of daily maintenance;
(3) Introducing after-sale services and training for solutions;
(4) Introducing after-sale services and notify the contact way;
Accessories supply guarantee: We supply free accessories within one
year warranty period. We will charge you for accessories supply
when the warranty is overdue;
We offer 24 hours after-sale consulting services nationwide on
hotline;
6. Video solution of equipment emergency failure. User themselves
need to equip video system and devices. Our technicians will
analyze the problems through video and guide clients’ technician to
solve the problem all together.
