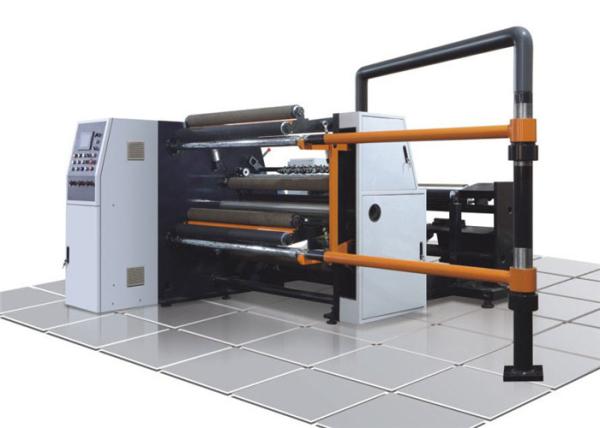

E High speed paper or plastic film slitter rewinder for
labelstock,Bopp,PET,CPP,PVC ect printing and package industries
rotogravure printing production line.pdf
introduction: this series high speed slitter rewinders applicable
for slitting and rewinding various materials, such as adhesive
paper, labelstick,bopp film, pet film,cpp, film,opp film, pvc
film,pe film, paper, etc. it is necessary converting equipment for
printing and packaging industries
Application:
This high speed slitter rewinder machine is used for the slitting
and rewinding the roll materials, such as laminated film
12-180um,PE,PVC 40um-150um, adhesive tape, paper, aluminum foil.
FEATURE:
1.Imported PLC integrated control is used in electrical control
system, human-machine communication is carried out by touch screen,
Set and display working parameters according to the requirements
from different products.
2.Vector frequency-inverter is adopted for rewinding, roll diameter
is automatically calculated by PLC to achieve automatic tension
control.
3.Vector frequency-inverter is adopted for winding, active winding,
roll diameter is automatically calculated by PLC to achieve
automatic tension control.
4.the independent unwinding part use shaftless pneaumatic insert
system,convenience for loading and unloading the jumbo roll. unwind
with automatic web guide.
5.special slip pneumatic shaft for rewinding, doctor knife and
round blade changing system for slitting. this let the rewinding
rolls surface even and nice tension
6.rewinding and unwinging part can running two direction,go forward
and back
7.PLC calculate the counting meter, roll diameter, machine will
stop when lack of material
8.The system has perfect mechanic, electric and pneumatic design,
also good safety protection.
9.There are many different models such as
1100,1300,1500,1700mm,2000,2200, even 2500mm available slitter
rewinder
Main specifications:
| Model | E-1300 | E-1500 |
| Width of unwinding | 1300mm | 1500mm |
| Max. unwinding diameter | Φ1000/1200mm | Φ1000/1200mm |
| Max. rewinding diameter | φ600mm | φ600mm |
| Slitting width | 40mm-1300mm | 40mm-1500mm |
| Paper core inner diameter | 76mm | 76mm |
| Max. rewinding speed | 400m/min | 400m/min |
| Error correction accuracy | ≤0.40mm | ≤0.40mm |
| Thickness of Raw Material | 0.012-0.2mm | 0.012-0.2mm |
| Total power | 12kW | 15kW |
| Dimensions ( L x W x H mm ) | 3600×4500×1850 | 3600×4900×1850 |
| Weight | 3500kg | 4000kg |
For more information, please add my
whatapp/viber/mobile/wechat/qq:+8615158408090
Q:how about the after sale service? warranty time for the machine?
A:we offer one year free warranty, and long-term trainning( the
first time is free, but we will charge you for the second time and
the training after that). we will offer free replacement according
to the series numbers when the parts damaged within the warranty
period
Q:do you offer any special service?. example: design, customized
ect
A:initial free training, second charged, customized is welcome
Our mission:
1.Let every cost be used into the raw material to achieve high
quality and high stable machine operation and long life; 2.Improve
Work efficiency to save the machine cost. 3. Let every machine more
Intelligent, convinient, labor saving, time saving.
1.Warranty Time:12 months/one year.
2.Our aim:Customer is the God, if you not buy the first time,it will
be your fault, if you buy but not buy second time, it will be our
fault.
A replacement can be made after the confirmation made by our
related department when parts breakdown under the condition of
right used within warranty period. The company develops file for
every single machine that is made. Serial numbers are marked on
each machine part and archived
