400m/min high speed slitter rewinder for adhesive paper and
film,slitting and rewinding machine for jumbo roll German
rotogravure printing production line.pdf
G Series is our best model with germany tech, and hot sold in
Europe and the United States,Mexico, Canada with CE certification.
we have the machine as demo in germany and usa. for the video,
please check the following link:

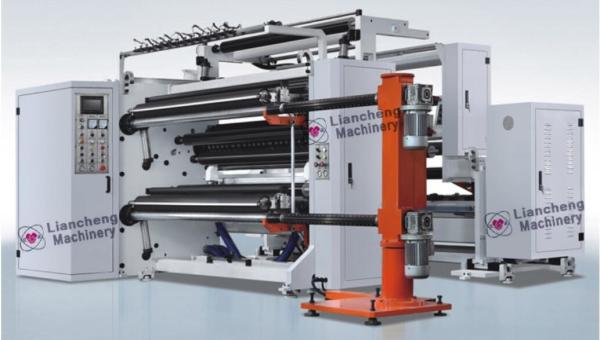

G Series top level high speed slitter rewinders for adhesive paper
and films, slitting and rewinding machine for jumbo roll paper
G Series slitter rewinders are top grade high quality model
slitting machines, suitable for slitting and rewinding various kind
of paper,label stock, plastic film, foil, metallized film, and
others laminates ect
Application:
This high speed slitter rewinder machine is used for the slitting
and rewinding the roll materials, such as laminated film
12-180um,PE,PVC 40um-150um, adhesive tape, paper, aluminum foil.
FEATURE:
1.Imported PLC for centralized control , all functions and operated
under touch screen , could set working parameters and display
status at screen
2.Main motor drive by the variable frequency motor , and controlled
by the inverter , have smooth and fast speed.
3.Rewinding adopts differential air shaft by the variable frequency
motor , automatic tension control .
4.Unwinder by the variable frequency motor , and controlled by the
inverter , automatic tension control .
5.Unwinder adopts shaft-less loading and unloading , lifting by
hydraulic , it is easy for loading , unloading and with high
efficiency , has web guide system .
6. It adopts rotary knife for slitting , regularity disc surface ,
the scrap edge discharged by blower .
7.The system has meter counting , calculate roller diameter ,
automatic stop by setting length
8.The system has a perfect integration design with machine ,
electricity and pneumatic , and takes complete safety protective
measure .
9.main components use world famous brand so keep the top level high
quality slitting equipment
Main specifications:
| Model | G -1300 | G -1500 | G -1700 |
| Width of unwinding | 1300mm | 1500mm | 1700mm |
| Max. unwinding diameter | Φ1200mm | Φ1200mm | Φ1200mm |
| Max. rewinding diameter | φ650mm | φ650mm | φ650mm |
| Slitting width | 50mm-1300mm | 50mm-1500mm | 50mm-1700mm |
| Max. rewinding speed | 400m/min | 400m/min | 400m/min |
| Error correction accuracy | ≤0.40mm | ≤0.40mm | ≤0.40mm |
| Total power | 33kW | 33kW | 46kW |
| Dimensions ( L x W x H mm) | 4100×4700×2150 | 4100×5000×2150 | 4100×5300×2150 |
| Weight | 4200kg | 4500kg | 4800kg |
note:the specifications of this paper slitter rewinders can be
tailor made as per your production need. we have many options so
please feel free to tell us your requirement for slitting rewinding
machines. especially this G series slitting machines are very good
for slitting label stock paper, fast speed, accurated and reliable
LCG-1600 high speed Slitting Machine In Germany customers' Factory
(400m per min)
https://youtu.be/zyMYYK-SRHA
Location: Germany
For more information, please add my
whatapp/viber/mobile/wechat/qq:+8615158408090
Service for After-Sale:
We can offer the engineer for oversea service to install, tranning,
and maintain ect.
Our Service and Technical Support:
1.Easy fault parts supplying.
2.Online Error solution
3.Installation with commissioning
4.Trainning for the operator
5.Machine software upgraded
6.Manual for products.
7.Error maintenace.
8.The others problems that buyers will be concern
Example:
Q: what kind of pre-sale service do you offer? do you offer the
free sample? and how about the freight cost?
A: we will make sample according to customer material by our
machine, and take a video for customer reference. above is free,
but the freight cost should be paid by customer.
Q:what kind of in-sale service do you offer? what is the warranty
for the easy fault parts? and what is the delivery time for the
machine?
A:if the easy fault parts is in the warranty period, we will offer
the free replacement as per quality warrantee terms and conditions,
and the delivery time for the machine is within 45 working days
after the deposit
